ASTRO-PHYSICS SUPER PLANETARY SERIES EYEPIECES

http://www.company7.com/astrophy/options/apsuperplan.html

Astro-Physics Super Planetary Eyepieces. Click on image for high quality enlarged view (172,912 bytes).
















Introduced Summer 2004 in limited quantity - like all other AP products.
This article expanded after the arrival of our first 4mm in 2005.
Overview: a telescope is the light bucket that gathers light and forms one virtual image, the eyepiece (or ocular) enlarges that image and focuses it to a point where it can be seen by the eye. It used to be common wisdom that a refracting telescope could be usefully operated at magnifications as high as something on the order of between twenty five to fifty magnifications per inch of aperture (1 to 1-1/2 per mm); and so a four inch aperture telescope (about 100mm aperture) could operate at between 100 to 200x. However, with dramatic improvements in refractive lens technology attained over the recent decades this limit is now on the order of better than three times the aperture - or about 300X or more for a very well made four inch apochromat. Just as the objective lens technology has advanced, so has that of the eyepieces that go onto a telescope. A number of names can come to mind whom we can credit for the advances in eyepiece design over recent years - and now that list includes Roland Christen.
Right: Astro-Physics Super Planetary Eyepieces showing (left to right): 8mm, 10mm, 5mm, 12mm, and 6mm.
The SPL 4mm eyepiece was not available to be included at the time this article was written (80,303 bytes)
Click on image for higher quality, enlarged view (172,912 bytes).

The Astro-Physics "Super Planetary" (or SPL) is an original three element eyepiece design by Roland Christen, the founder and lens designer of the world renowned Astro-Physics Company near Rockford, Illinois. Mr. Christen has attained an uncommonly good understanding of optical theory and practice, with experience he has gleaned from decades of of designing, manufacturing and testing many of the best refractive telescope optics in the world. Previously, Astro-Physics customers selected a telescope and then bought their eyepieces from third parties. By 1994 Astro-Physics and Company Seven became the only American source of a then new high resolution eyepiece benchmark: the Carl Zeiss Abbe Orthoscopic. The term "orthoscopic" denotes an eyepiece that introduces no barrel or pincushion distortion, so that an object will have the same size when observed anywhere in the field of view. The Abbe design employs a triplet field lens and a singlet eyelens. The Abbe Orthoscopic eyepiece were optimized for use on the planets and in their shorter focal lengths of from 4mm to 10mm are not recommended for use when wearing spectacles.
Any new product from Astro-Physics is greeted by much enthusiasm and speculation. Accordingly true to form, Mr. Christen has provided the astronomy community with another fine choice of product. However, this time it is his first foray into production eyepieces. The three element "Super Planetary" series eyepieces were first publicly hinted at in late 2003. The first examples of the SPL in 5mm focal length were shipped in December 2003. While the first several nearly complete sets were delivered in Spring and Summer of 2004 the introduction of the 4mm SPL was delayed at the time this article was first written; when the 4mm came available we added information about it to this article. The original factory plan was that these eyepieces would become available in some numbers by the Fall of 2004, and in stock by 2005. As it turns out the ramp up process and sporadic production have rendered the availability poor, we have been so confused about what is available and when that we have generally not been accepting new orders for these eyepieces - even while some other retailers have promised delivery dates that are incongruous. However, these are all on display at Company Seven's showroom.
The SPL's will not replace all other choices for use on Astro-Physics telescopes since they were developed only to meet the requirements of a small percentage of the observing population. And so most of our community will continue to rely on other highly perfected complimentary designs most noteworthy which are the innovative Nagler, Panoptic and Radian series devised by Al Naglerthe founder of TeleVue Optics for example. Regardless, the preliminary and sensible comments made by Roland Christen never seem to keep people's imaginations from running away.


Design Imperatives: this series were developed with a few basic goals in mind:
  • provide high contrast, true color, clear images
  • optimize for high resolution applications for targets near center of the field
  • provide as transparent a lens as glass and coatings technologies permit
  • insure these are as or more comfortable to use than reference standards
  • make the mechanics durable but practical in most observing climates
  • the design should function with telescopes as fast as f/4
The result of this research and development effort are the "Super Planetary" series which currently include the following focal lengths: 4mm, 5mm, 6mm, 8mm, 10mm and 12mm. The SPL optical components are manufactured under the management of Valery Deryuzhin by Aries in the Ukraine to specifications set forth by Astro-Physics. The mechanical components of the SPL eyepieces are made in the USA. The SPL eyepieces are assembled by and quality control is tested by Astro-Physics at their factory in Rockford, Illinois.In keeping with the Astro-Physics tradition, there is not much boasting or advertising going on about these new items since Mr. Christen has always been content to let his products speak for themselves.
three Astro-Physics Super Planetary Eyepieces












    Understated, high technology...

SHARED CHARACTERISTICS OF THE SPL


  • Design apparent field of view - 42 degrees
  • Eye relief - scaled, varies from 125% (4mm) to 140% (8-12mm) of the focal length
  • Number of optical elements - three in two groups
  • Operating range - systems from f/4 upward
  • Broadband multi-coated on all surfaces to reduce unwanted internal reflections or ghosting
  • Electron beam deposition assure broadband multi-coatings are durable and permanent
  • Barrel - 1.25" / 31.7mm Diameter polished stainless steel
  • Barrel Thread - accepts standard thread in 1.25" filters
  • Top - conical and made of non-metallic black Derlin to resist fogging and prevent freezing to skin
  • Engraved and painted white with "Astro-Physics", and on reverse "SPL - 4mm" etc.
  • Provided with top and bottom black plastic slip on caps, individually boxed
Right: Astro-Physics Super Planetary Eyepieces showing their side, interior and upright exterior (78,536 bytes).
Click on image for high quality, enlarged view (200,490 bytes).

The eyepieces have these air to glass surfaces: front and rear of first group of two cemented lenses, front and rear of eye lens.
Filters: Since high resolution eyepieces are so often used on relatively bright objects (planets, moon, etc.) the Super Planetary eyepiece barrels are threaded to accept standard thread on 1.25 inch (M28.5 x 0.6) filters including Color, Neutral Density and Sky Light Pollution Reduction.

EYEPIECE PRICE AND PLANNED AVAILABILITY

The Astro-Physics Super Planetary series were initially going to be distributed only directly from Astro-Physics. It was anticipated that once production came up to speed then the full line Astro-Physics retailers Baader Planetarium in Germany and Company Seven in the USA and possibly some other retailers would be allowed to offer these but this has since changed. These are good eyepieces however, the availability of these has eyepieces to Company Seven has been so problematic that we can not accept orders for these eyepiece for the foreseeable future. Regardless, a complete set of these will all remain on display at Company Seven's showroom.

    Part NumberDescriptionIntro. PricePlanned Avail.
    SPL0404mm Super Planetary Eyepiece, 1.25"$245.00Summer 2005
    SPL0505mm Super Planetary Eyepiece, 1.25"$245.00October 2004
    SPL0606mm Super Planetary Eyepiece, 1.25"$245.00October 2004
    SPL0808mm Super Planetary Eyepiece, 1.25"$245.00October 2004
    SPL01010mm Super Planetary Eyepiece, 1.25"$245.00October 2004
    SPL01213mm Super Planetary Eyepiece, 1.25"$245.00October 2004


OUR IMPRESSIONS

We at Company Seven tire of what we refer to as the "eyepiece du jour" syndrome. This is when someone obtains the first of a new eyepiece (usually one that few others who are credible have evaluated) and then they rave to all that it is the best in the world - they remind us of an old elementary school acquaintance who used to boast "I have one and it's the best, and you don't". First of all they are probably wrong, and secondly there are too many design properties of an eyepiece to factor before can set forth such a blanket statement. Many of us are willing to give up some fractional amount of fine detail provided by one design of eyepiece for the increased comfort or field of view of another design. And there is a good reason why some eyepieces have six, seven or more elements - and it has nothing to do with bragging rights; each element is there for some reason. Until aspheric designs become practical to produce, we are likely to see several elements in the better wide angle designs, and a few in narrower field of view designs. Some of us seek out the finest telescopes regardless of cost, and the eyepiece that will show the most clear and clean image regardless of all other considerations. So just as they make chocolate for some and vanilla for others, there is not one clear best choice of eyepiece for everybody - the technology is not yet at that point.
We compared the SPL against a number of the better regarded production eyepieces. And there was also some comparison of the SPL's against similar focal length eyepieces out of production from our collection. Visual evaluations on very fine resolution targets were performed in daylight outdoors, and indoors. Indoors testing was also done with an artificial star, under reflected powerful and distant (to reduce heat effects) quartz halogen, and also with artificial daylight sources in a controlled environment. The advantage indoors is that we know the distances, and can control the seeing conditions. The comparative evaluation out doors were performed looking at fine details on distant leaves under overcast seeing conditions; a Leica rangefinding binocular was used to check distance to the closer (< 1,300m) targets. The telescopes we employed were:

We employed these instruments at various f ratios by adding auxiliary negative optics in line made by a number of makers. The various measurements published below were taken by us although we did not measure Eye Relief at this time though we publish that information above as provided by Astro-Physics. We lacked access to a most capable testing device since this unit is now down and being replaced by a new GPI in mid September 2004; we were hoping to gather some MTF data just for fun. We took advantage of some other devices to help us to arrive at some of these conclusions:
    1. The SPL series are an innovative accomplishment best suited for high resolution applications, their ability to reveal fine detail clearly is as good as we have observed. The contrast of the SPL is among the best two designs compared, and this is probably the best possible with recent lens technology.Correction for astigmatism is very good, and these introduce no distortion. Distortion is a change of magnification across the field of view so that a square target might appear as a pincushion with edges bowed in, or barrel with edges bowed out.
    The ability to transmit a high percentage of light and focus it so precisely means that one will not only see better detail on bright targets, but that one is likely to see fainter stars in the field of view than that provided by less capable designs.
    2. There were no ghost images or undesired reflections from the field end of the eyepiece, and so you will not know when your telescope is near a bright star until the star actually enters into the field of view of the SPL. In an illuminated room we noted some modest reflection of light within the SPL caused by off axis room lighting or a camera flash, but this was modest or less than that found in most other eyepieces. Generally speaking if you set the eyepieces on a black cloth in daylight the lenses will most likely appear transparent, similar to the Zeiss Abbe.
    An observer having to contend with stray lighting might find it helpful to wear a dense black cloth hood overhead (not white, especially in the Southern states) or use an eyecup. We prefer to use the design of eye guard such as those provided with the Orion Ultrascopic (Baader Eudiascopic) series which we will stock.
    3. The glass used is very transparent, the coatings attenuate some wavelengths that would otherwise cause some reduction in perceived detail. This has to do with dealing with eye physiology and not simply pure light throughput.
    4. The balance of design Field of View and Eye Relief provide a practical balance for the designed purposes. In these respects the SPL compare similarly to the other eyepieces which we considered to be the reference standard to date. We could comfortably observe with as short a Focal Length SPL as the 10 mm without making eyelash contact. Other eyepieces tested that were designed with better eye relief than the SPL's showed lower contrast to one degree or another.
    5. We do not generally recommended the SPL eyepieces (or most other simple designs) in focal lengths of from 4mm to 10mm for use by spectacle wearers since the distance from the eye lens to the exit pupil is too short to permit seeing the entire field of view. However, some observers with astigmatism may find that when observing at such high magnifications then the exit pupil is so small in diameter that it may bypass the off center area of the Cornea that is introducing astigmatism. And so some spectacle wearers may find the SPL's useable.
    Alternatively, it is a simple matter when observing a small object such as planet to back the eye away from the eyepiece. This will result in a narrowing the apparent field of view, in the case of the shorter focal length SPL's we found this to be around 30 degrees or somewhat less. This change of observing position can make several SPL's come within reach of many spectacle wearers.
    6. These are not "wide angle" or long eye relief eyepieces, and considering their high magnification and comparably narrow field of view these would not be our first choice for applications involving:
    • use on astronomical telescopes that have no tracking mechanism
    • sharing views with a number of others, especially if they lack experience using eyepieces
    7. The SPL can be an excellent choice for use in Eyepiece Projection imaging (film, CCD) techniques
    8. Company Seven evaluated our first production SPL eyepieces for cleanliness and they present a very clear image free of internal lens contaminants. However, some field stops showed artifacts that would not be visible at night unless scanning across a well illuminated target such as the Moon, or on the Sun; we could remove these easily enough.
    9. The classical Carl Zeiss Othoscopic design eyepiece of Ernst Abbe was designed for use with telescopes of f/10 or greater. The Zeiss Ortho design that was most recently in production were the Abbe Orthoscopic design, and these were optimized for telescopes of f/8. It is quite an accomplishment that the SPL series work well for their intended purposes at ratios as fast as f/4.
    10. Color fidelity appeared excellent using a daylight source on targets across the visual spectrum. The SPL design correction peaks in the yellow green region of the visual spectrum as does the human eye. But even with the choice of coating employed, these remain useful beyond the visual and were measured with a sensor to transmit below 400nm in the UV, and above that notably into the IR.
    11. When an observed target is off center in the field of view the SPL then the performance remains consistently good. And so these can be quite suitable for close in observing of star clusters which provide pinpoint stars across the field of view.
    12. At the high magnifications these SPL's can provide, any speck of dust on the lenses of any similar focal length eyepiece will appear obvious and egregious. So it is important to keep these clean.
    13. Considering SPL field of view and eye relief as compared against other first rate high resolution designs shows:

    • The definition of fine detail was the close to the best probably a close second place, but the next closest eyepiece design of similar focal length was quite good
    • The retail prices are similar among the top three choices (top in terms of resolving fine detail)
    • The contrast was perceptibly best on the SPL and Zeiss Abbe Ortho than on other eyepieces of similar focal length
    • The SPL provides between about 60 to 90 percent of the field of view (by diameter) of most of the better eyepieces of similar focal length which we compared.
    • The SPL provides between about 30 to around 100 percent of the eye relief of most of the better eyepieces of similar focal length which we compared. Even the short SPL 5mm was considered useful for viewing by those who did not have to wear prescription spectacles.
    • The SPL's are the most fussy among the eyepieces compared here regarding f ratio of telescope, and choice of auxiliary negative lenses. When using the SPL on the Questar for example some anomalies appear around the edge of the field of view that are not visible on the Astro-Physics 92mm f7, the Orion 100mm ED, or TeleVue NP101 telescopes. Those that did show up on artificially illuminated test targets however are not likely to be noticed when using the SPL eyepieces on targets at night or in daylight.During another procedure using the SPL on an illuminated target with a common Barlow, or on the Questar 3-1/2 with the internal Barlow engaged then a yellow chromatism is noticeable around the edge of the field, and a noticeable vignetting appears at the border. This is quite similar effect to that effect seen on a very highly regarded eyepiece design that is considered with no question to be the best in their respective class.
    • Compatability with the Barlow lenses we tried was the one perceptible aspect where most other eyepieces tested were found to be completely insensitive.

    14. An optional good quality negative lens (Barlow) can provide higher magnifications for those who demand an increase in magnification, or increase in the number of available magnification fine "steps", or a bit longer eye relief. The SPL is useable with all Barlow lenses, especially when using the SPL eyepiece on targets at night or when they are in the center of the field of view. However, the best performance across the entire field of view is attained when using a TeleVue Powermate lens; this is a negative lens incorporating a beam shaping component.The least desirable visual results were obtained when using the comparatively simple and compact 1.25" Barlow lenses such as the Vixen Ultima (Orion "Shorty Plus") or the Barlow installed in the Questar 3-1/2" telescope. We also noted that even the better eyepieces (including the TeleVue Radian) performed better with more refined (and more costly) Barlow or TeleVue Powermate lenses.
    15. The SPL is not very sensitive to eye placement. As long as you can line your eye up to the exit pupil then you will see the target even if your head is tilted a bit off axis or slightly off center. There is no black out effect when observing daytime or at night.
    16. The ease of eye placement, and the apparent field of view which provides about the angular dimension across which the human eye can focus makes these a good choice for use with an optional Binocular Viewer, even more so if weight of the payload poses some concern.
    17. The SPL eyepieces came were assembled from two production lots, these we evaluated are close but not parfocal.
    18. The smooth Derlin housing is comfortable to handle even in extreme cold, and this is good since one will need to handle these with a firm grip to avoid having an SPL slip out of the hand. Some of us might find it better to have some ridge running the circumference of the Derlin. We all felt it is too easy to unscrew the stainless steel barrel from the upper assembly. These are included here as personal preference notes.
    19. The engraved and painted writing on the SPL's are easy to read when they are held in low or red light. The focal length designation is only visible when the number is turned towards the observer. In practice, the owner may learn to judge focal length simply by noting the differences of height. However, it might be helpful to provide some kind of more obvious focal length coding (extra f.l. engraving, lines, etc.) around the SPL to more readily distinguish one focal length from another in the dark.
    20. We did not test the SPL with an optional positive lens (telecompressor) in place. It seems pointless to buy high magnification eyepieces then place a lens into a telescope to reduce that magnification.
    21. At such high powers, a telescope equipped with a smooth fine geared focuser (such as the Questar 3-1/2, Astro-Physics 92, etc.) can sure make the testing go a bit easier.
Astro-Physics Super Planetary Eyepieces. Click on image for high quality enlarged view (172,912 bytes).














It makes little practical difference how the SPL series compare against obsolete, or out of production designs. The fact is these are about as good a performance, practical, high resolution "super planetary" eyepiece as one can obtain in 2004. Assuming their eye relief and field of view are compatible with observers needs, then these will be popular within the community of those who seek the highest possible detail: double star observers, occultation chasers, and planet watchers. And of course there will be some who just want to know they own a set for the bragging rights.
Right: Astro-Physics Super Planetary Eyepieces with and without lens caps in place, and with set of covers to the side (51,932 bytes).
Click on image to see a higher quality, enlarged view (137,698).

SUPER PLANETARY EYEPIECE SPECIFICATIONS

Measured by Company Seven August 2004 and August 2005
    Part NumberFocal LengthField StopWeightHeight
    SPL0404 mm2.60 mm2.5 oz / 72 g33.50
    SPL0505 mm3.57 mm2.5 oz / 72 g36.1 mm
    SPL0606 mm4.37 mm2.6 oz / 75 g37.25 mm
    SPL0808 mm6.04 mm2.8 oz / 79 g40.12 mm
    SPL01010 mm7.65 mm3.0 oz / 85 g42.85 mm
    SPL01212 mm8.91 mm3.2 oz / 92 g45.26 mm

    * Specifications are subject to change without notice.
These are such a nice product that were are considering production of a presentation grade case to house them. Please contact Company Seven for additional information about these eyepieces and the presentation case.

CLEANING & MAINTENANCE INSTRUCTIONS

  1. It is best to protect eyepieces from shock, vibration, dust and dirt. When not in use, store in a padded case. Keep the lens covers in place.
  2. Do not pack these into an airtight container or store them away with cap on when wet (from dew, etc.) for long periods of time. Before storing for an extended time let the eyepiece "dry out" then store it in an air conditioned room ideally with desiccant in order to reduce the potential for contamination or the development of fungus.
  3. Do not ever disassemble an eyepiece.
  4. Draw any loose bits of foreign matter from the surface of the lenses with an air bulb or small vacuum. Stubborn particles may be removed with a soft camel's hair brush such as the Staticmaster™ which we stock.
  5. To remove contaminants such as finger prints or eyelash oils, place a few drops of an approved lens cleaning solution such as those made by Kodak, Carl Zeiss, etc. onto a natural cotton swab. Make certain the swab is damp but not dripping wet.
  6. Then gently wipe the lens surface in a circular motion with little or no pressure, surface adhesion should do. Although these optics incorporate durable anti reflection coatings coatings, they can be damaged by hard rubbing if tiny abrasive dirt particles are pressed accross the glass.
  7. You may follow with a wipe using a distilled water wetted swab or tissue.
  8. You may arrange to have Company Seven clean any SPL (or other optic) we sold for little or no fee.
  9. DO NOT USE ANY OTHER CLEANING SOLVENTS OR SERIOUS DAMAGE IS LIKELY TO OCCUR
You may refer to our Library for the article Cleaning Most Consumer Optics a short illustrated "how to" including "flow-chart", with discussion of particle removing techniques, brushes, and solvents.



CARL ZEISS "ABBE ORTHOSCOPIC" EYEPIECES

http://www.company7.com/zeiss/products/czabbeoclr.html

CARL ZEISS "ABBE ORTHOSCOPIC" EYEPIECES


The new standard of excellence in high resolution eyepieces
7 April 1997
Astro-Physics Super Planetary Eyepieces. Click on image for high quality enlarged view (70,315 bytes).

The new production Carl Zeiss Abbe Orthoscopic series oculars are now available in limited quantity, and only as a set of five with one optional ocular. These are: 4mm, 6mm, 10mm, 16mm, 25mm. An optional sixth ocular of 34mm is also available soon. It is planned that only 100 five piece sets will be made available in the United States. These will be sold only by Astro-Physics Co. and by Company Seven Astro-Optics Division of Laurel, Maryland. All are on display in Company Seven's showroom and at least a few sets will remain on display and stored in our museum collection.
Company Seven will contact its customers to advise them of the product availability. And it is planned by Company Seven to accept orders for these items only from those who have already established a customer relationship, and to members of the "Carl Zeiss Historica Society". Even then, the availability issue is such that we ask our clientele to buy only one set, or possibly as many as two sets if they have a binocular viewer.

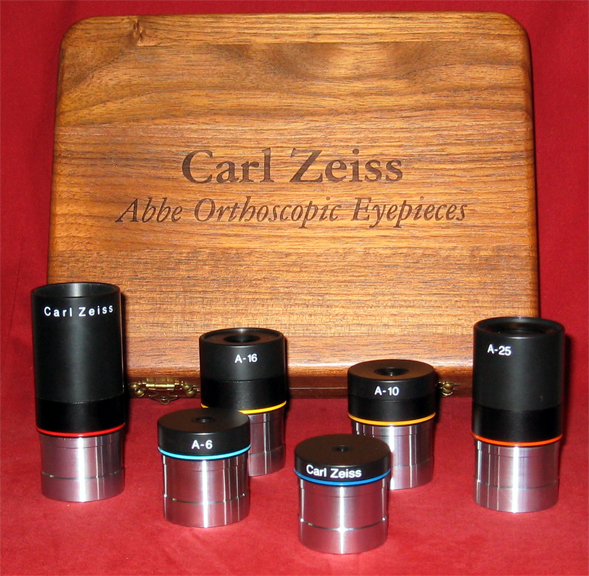

Right: Carl Zeiss Abbe Orthoscopic series oculars with optional laser engraved solid walnut wood presentation case.
In front of case are (left to right): 34mm, 6mm, 16mm, 4mm, and 25mm. Models with extendable eyecup are shown with eyecup retracted (89,603 bytes).
Click on image for higher quality, enlarged view (321,968 bytes).
Design: The design of the original Orthoscopic eyepiece dates back to the 1800s when Ernst Abbe first designed them to be used for accurate measurements of linear distance on microscope slides. The term "orthoscopic" denotes an eyepiece that introduces no barrel or pincushion distortion, so that an object will have the same size when observed anywhere in the field of view. The Abbe design employs a triplet field lens and a singlet eyelens.
The modern Carl Zeiss Abbe Orthoscopic series that we now offer use a high index Schott Lanthanum glass to reduce the already low off-axis aberrations present In a good orthoscopic design. These oculars, when used with a high quality apochromatic telescope of f7 or longer focal ratio, will offer images of the planets which will appear clean and free of false color fringing from the center to the edge of the field of view.
The apparent field of view of each of these oculars is 45 degrees, the exception being the 34mm ocular which affords a 40 degree apparent field. In side by side comparisons, the fields of view actually appear to be equal to or slightly larger than Plossl oculars advertised as having 50 degree apparent field of view.
This Carl Zeiss Abbe Orthoscopic series oculars are parfocal. Each ocular is threaded for 1.25" diameter standard filters. The ocular barrels are of a dull black finish with a color coding band, with "Carl Zeiss" and the respective focal length ("A-16" for example) on each. The 1.25" barrel is chromed, and each features a machined safety groove to reduce the possibility of accidental loss from a focuser. The 16, 25 and 34mm focal length models incorporate a retractable (not fold down rubber) eyecup.
Each ocular is passed through very high quality control measures to assure perfection of raw materials, manufacture and assembly. Each is then furnished with a slip-on black plastic cover for the eye lens end of the ocular, with another cover for the 1.25" barrel. Each is packaged in a "zip lock" plastic bag with the Carl Zeiss Jena product description, numbers and final quality control inspection marks. In addition each set of five (4, 6, 10, 16, and 25mm ) is furnished in a walnut wood presentation case which is laser engraved with "Carl Zeiss Abbe Orthoscopic Oculars" and the current Carl Zeiss trademark. The walnut case will accommodate the optional 34mm ocular.
Coatings: Each of the 4 air to glass surfaces is multi-coated with the Zeiss patented "T" multilayer coatings; these are designed to achieve the highest possible light-transmission and contrast.
It is in this area where the Zeiss Abbe orthoscopic has no equal. The total measured light transmission (including the internal glass absorption losses) exceeds 97%. For high-power planet observers, this means that planets appear bright and sharply defined, with none of the grayish-white haze surrounding the ball of the planet as is common in many other oculars.
The visual impression is striking. It Is almost as if a thin veil has been lifted, thereby revealing the most subtle contrasting features more clearly. There is a similar effect for deep-sky observers using the longer focus, low-magnification Zeiss Abbe Orthoscopic series oculars. Even though the field width is not spectacular, the enhanced contrast on small bright and faint objects really can be worth it.

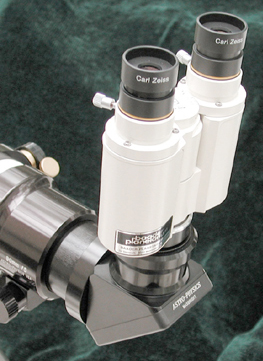

Zeiss Binocular viewer on an Astro-Physics 90mm

Recommended For: These eyepieces are designed primarily for solar/lunar/planetary users who need the last ounce of contrast to pick out subtle contrast features.
Left: two Zeiss Abbe Ortho 16 mm oculars with eyecups extended on Zeiss Baader Binocular Viewer, attached to Astro-Physics 90mm "Stowaway" Apo telescope (114,009 bytes).
Secondarily, these eyepieces work extremely well for deep-sky observers who are looking for maximum image brightness and high contrast of faint objects. As such, these oculars will appeal more to the experienced observers using premium equipment.
Availability: Carl Zeiss introduced Abbe orthoscopics several years ago when the factory in Jena, Germany produced astronomical instruments for amateurs. At that time the 4, 6, 10, 16 and 25mm focal lengths were offered. When Zeiss dissolved their amateur telescope division in the Fall of 1995, production of these eyepieces was discontinued along with the rest of their instruments and accessories.
Late in 1996, the Baader Planetarium in Germany commissioned a special production run of four hundred sets of oculars. This production run introduces the new 34mm Abbe orthoscopic which was not previously available. There will be only one hundred sets available for sale in the US market; these are to be delivered at intervals throughout 1997. The first shipment arrived in April. At this time, we do not know if Carl Zeiss will produce additional telescope eyepieces for sale in the future
In honor of this special production, we are offering a velvet-lined, walnut wood presentation case bearing the inscription "Carl Zeiss Abbe Orthoscopic Oculars". All eyepiece sets will include this case, and a limited number of extra cases are available for collectors who may already own some of the oculars. The case incorporates foam liner with cut away areas to accommodate the oculars in the complete set.


TECHNICAL SPECIFICATIONS:

    Barrel diameter1.25" (31.7mm)
    Focal lengths4, 6, 10, 16, 25 and 34 mm
    Lens elementsFour (a triplet field lens group and singlet eyelens)
    Anti-reflection coatingsZeiss "T*" multi-coat
    Transmission=>97%
    Field of view45 degrees
    ParfocalYes
    Filter Thread1.25 inch (M28.5 x 0.6)

INDIVIDUAL AO EYEPIECE SPECIFICATIONS

As determined by Company Seven
    Part NumberFocal LengthEyecupColor BandField StopWeightHeight
    AO-44 mmNoBlue3.31 mm2.1 oz / 59 g32.97 mm
    AO-66 mmNoTeal4.92 mm2.2 oz / 62 g35.85 mm
    AO-1010 mmNoDk. Yellow8.29 mm2.5 oz / 72 g43.45 mm
    AO-1616 mmYesYellow8.29 mm3.2 oz / 91 g53.28 mm
    AO-2525 mmYesOrange20.69 mm3.8 oz / 107 g66.9 mm
    AO-3434 mmYesRed24.31 mm3.6 oz / 101 g78.5 mm

    * Specifications are subject to change without notice.
PRICING:
    ZEISSA0 - Zeiss Abbe Orthoscopic Set - 4, 6, 10, 16, 25mm with Walnut Case Sold as a set only, no individual sales. $1,180.00ZEISS34 - Zeiss Abbe Orthoscopic - 34mm (new issue) $240.00
    ZEISSBOX - Walnut Eyepiece Case for collectors who already own the 5 original eyepieces. $50.00
      The case (illustrated at top of the article, and again below) will also accommodate all six eyepieices, this includes the new 34mm
      The laser engraved walnut wood cases will be available in the first week of May 1997.
      Unless you otherwise requested, we will ship your oculars to you with the case when both are available.
    Limit: two sets per customer.
    Zeiss Abbe Eyepieces
Right: The cover page from Carl Zeiss Jena GmbH publication "Zeiss Abbe Eyepieces, July 1994 (22,905 bytes).
Click on the image to see a higher quality, enlarged view (77,352 bytes).

FURTHER READING

    To read additional information refer to "Zeiss Abbe Eyepieces", the eight page illustrated technical booklet by Carl Zeiss Jena GmbH. This is the edition dated July 1994, and is written in English. As a tangible expression of our gratitude Company Seven has made a copy of this publication available in Acrobat Reader ".pdf" format for our customers personal use only. Please contact Company Seven to obtain the private link to this document.

Astro-Physics Super Planetary Eyepieces. Click on image for high quality enlarged view (70,315 bytes).

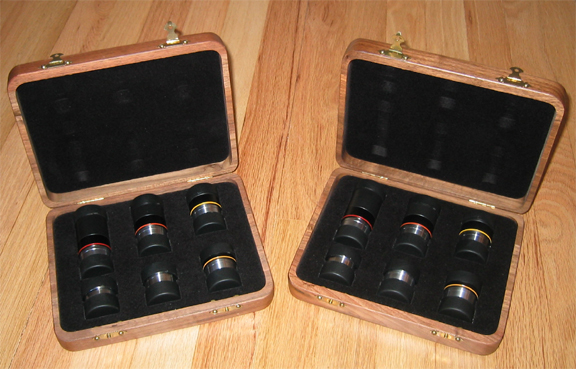

Above: two complete sets of Carl Zeiss Abbe Orthoscopic oculars with provided caps, placed with optional fitted wood cases (70,315 bytes).
Click on image for higher quality, enlarged view (180,377 bytes).




Van Slyke Turret

http://www.observatory.org/

Features & Specifications: Hexagonal 1 Turret (1.25" format)

  • NEW QUARTZ mirrors with individual Zygo interferometric analysis documentation
  • 2" barrel-nose [full-aperture] input eliminates vignetting from low-power 1.25" eyepieces
  • Exclusive built-in 2" filter slot makes changing filters for all 6 eyepieces instantaneous
  • Exclusive dual rotation capablility allows instant eyepiece and mirror position changes
  • 2" SCT Quad-Lock AHEX Revolver (optional) for "locked-in-place" Hex body rotation
  • Double failsafe, angled self-locking Nylon thumb screws (10-32)
  • Eyepiece thumb screws that tighten at an angle - like a lock washer but better
  • Turret rotation locking thumb screw
  • Convenient body rotation handle on rear of Hexagonal
  • Ultra-quality ProtoStar QUARTZ first-surface mirror (see below for specs)
  • Precision milled from solid 4.5" diameter 6061-T6 aluminum stock for single-piece accuracy
  • All stainless steel/Nylon hardware
  • Aircraft-grade 6060-T6 aluminum (NAS620 or AN960 aeronautics specs) or better
  • Military specification 18-8 stainless steel (MS15795, MS27183 or ASTM A693) or better
  • Positive spring-loaded ball bearing click stops at each eyepiece
  • Luminous [glow-in-the-dark] indents for easy active eyepiece and filter locating in total darkness
  • Dual purpose Quad-Lock system for secure Hex body rotation (also built into all VSI focusers)
  • Filter size: 48 & 50mm (2") with a maximum cell thickness of 5/16" (0.3125")
  • All SIX eyepiece output ports are 1.25" format
  • Includes six 1.25" dust plugs and one 2" dust cap
  • Maximum [eyepiece barrel] insert depth = 1.25"
  • Dimensions: 4.5" diameter x 4.5" long (including 2" barrel-nose)
  • Hex 1 weight = 25 oz. (approx. weight w/6 loaded eyepieces = 3 lbs)

Hexagonal 1 Turret General Information

VSI's Hexagonal 1 offers a contoured European styling and DOUBLE Nylon (10-32) lateral locking thumb screws, incorporating our exclusive failsafe lateral locking system, on each eyepiece port. The Hex1 also features spring-loaded, ball bearing click stops at each of the six ports and rotary eyepiece cylinder lock-down thumb screw. Our exclusive, built-in 2" format filter slot offers instant filter changes for all 6 eyepieces. No removing eyepieces and fumbling with 1.25" filters for each individual eyepiece. You use one filter for all 6 eyepieces.
Note that all eyepieces should be [push-pull] parfocal positioned to eliminate refocusing when rotating from one eyepiece to another. If you have a matched set of parfocal eyepieces, all you do is pop them in and lock them down -  you're done. If you have an unmatched set of different eyepieces, then simply parfocus each eyepiece by push-pulling until all eyepieces are parfocused. Note the green-white indented dot. It is filled with luminous paint that glows in the dark. This feature will easily indicate the active eyepiece position in total darkness.
VSI's 2" to 1.25" x 6 Hexagonal 1 turret offers exclusive features and build-quality that other turrets don't. Our unique 2" format barrel-nose input with full 1.75" internal clear-aperture diagonal mirrors (ProtoStar QUARTZ 1.83" minor axis x 0.375" thickness), eliminates vignetting from fast scopes and/or low power 1.25" eyepieces (i.e. 40mm, 32mm, 26mm, 24mm, 20mm, etc.). The built-in 2" filter slot accepts 2" filters with a cell thickness up to 5/16" or 0.3125" (8mm). Just pop the filter in the spring-loaded slot and push the ejection button on the bottom and your filter is instantly ejected out into your hand (see picture at left). The Hex1 turret accommodates six 1.25" eyepieces (not included).
Functionality and simplicity of operation have always been VSI's trademark of quality. Our new Hexagonals are no exception. The entire Hex consists of only two major parts (the 2" barrel-nose tube structure and the rotating 6-eyepiece cylinder), with only one moving part (the rotating 6-eyepiece cylinder itself).
The Hex1 has a locking thumb screw that secures the rotation of the 6-eyepiece cylinder. No other turret eyepiece holder, that I know of, has this exclusive lock-down capability. Why would you want an eyepiece rotation lock? Same reason you want a focuser with a moving tube lock. And all individual eyepiece holders incorporate our exclusive, failsafe angled lock system. By placing the locking thumb screws at a 45 degree angle to the eyepiece's 1.25" barrel-nose, you apply lateral pressure as you tighten the thumb screw, locking it in place - like a lock washer. Each eyepiece on the Hex1 has dual angle, self-locking thumb screws for super secure failsafe operation.
Load your Hex1 with eyepieces once, and you'll never have to fumble with eyepieces in the dark again. Find a custom eyepiece case, like the one pictured at right (not included), and you'll be instantly set up for mobile astronomy in the field. Just slide your fully loaded Hex1 into your scope's visual back and you're ready to observe. And you'll have the coolest looking, eye-catching scope at the star party!
Why does the Hex1 have a long 2" barrel-nose that wastes profile? Profile is NOT wasted on the Hex. In conjunction with our optional AHEXSCT adapter, this added profile is ergonomically necessary so you don't hit your head on the back of your scope's visual back when trying to look through the eyepiece. If the Hex was fitted with a low-profile 2" threaded slip-ring (like our Sliders), the Hex1 would attach too close to your scope's visual back - ouch! If you have a secondary focuser docked to your scope's visual back, then you still have plenty of clearance for your head, and the Hex's 2" barrel-nose profile is consumed inside the focuser's moving tube - profile issue equalized. All 1.25" eyepiece turrets should have a 2" barrel-nose (unfortunately, none do), expecially when using 1.25" low-power, wide-field eyepieces because vignetting can be eliminated with a 2" format input. And Hexagonals also feature a huge internal 1.75" clear-aperture and oversize 1.83" minor-axis, first-surface QUARTZ  mirror. Is this overkill?
For your convenience, all VSI TOADLOADERS models, that incorporate the [dual purpose] QUAD-LOCK feature, allow their moving tubes to lock the Hex in place, while still providing full rotation of the Hex body (see AHEX SCT adapter below for more info). No other turret on the market has our exclusive dual rotation feature. Just turn the handle to the most comfortable active eyepiece position (no thumb screws to unscrew), then simply hold the handle in place and rotate the eyepiece cylinder to change magnifications. When speed and safety are paramount, this is the eyepiece turret you need. It's great for star parties, public viewing sessions, quick A/B object comparison using different eyepieces or filters. Slip a 2" filter in the Hexagonal's built-in filter slot and this exclusive convenience becomes a necessity.
NOTE: If you are using a VSI focuser with QUAD-LOCK, you don't need the SCT AHEX Revolver. See ADAPTERS link for more adapters.

VSI's Exclusive 2" Built-in Filter Slot

Our New 2" format filter slot is now built into both Hex models - the 1.25" x 6 Hex1 (pictured at left) and the Giant 2" x 6 Hex2 (pictured far below). Each Hex comes with a fitted 2" OD ring (included) that simply pops into the filter slot, eliminating stray light from entering the housing when not in use. This stray light blocking ring is pictured (below left), inserted in the Hexagonal's filter slot. The finger notch, also pictured below left, allows easy grasping of the ring or filter after pushing the spring-loaded eject button on the bottom of the Hex1 housing (pictured below middle). The filter ring is held in place by a plate-type spring (pictured below right).
This exclusive feature offers filter insertion and extraction in a split second, literally. No bulky filter wheels or separate slide mechanisms that gobble up your valuable profile and induce mechanical flexure into your imaging train. Our built-in filter slots consume only the profile thickness of the filter cell itself, which is typically less than 5/16" (8mm).
The filter slot was designed to accept the larger format 2" filters to eliminate vignetting caused by using 1.25" low-power, wide-field eyepieces (i.e. 40mm, 32mm, 24mm, etc.). This larger 2" format was selected because a 1.25" filter, at an extended distance from the eyepiece base, would cause more severe vignetting, compared to placement of the filter at the base of the eyepiece. This extended distance from the eyepiece would only allow the use of hi-power eyepieces. Therefore, this slot will only accept the larger, thinner 2" format filters with a cell thickness up to 5/16" or 0.3125" (8mm). Most 1.25" filters are actually thicker (0.45") and have an internal ring that reduces the available clear-aperture even further. See ADAPTERS link for other 2" filter slot adapters.

The Inside looks as Good as the Outside

Hex1 turrets contain oversize optical-grade, first-surface, diagonal mirror flats from ProtoStar that have a huge 1.83" minor axis with a 0.375" thickness (1:6 ratio), and meet or exceed Milspec MIL-M-13508C.  QUARTZ mirror with individual Zygo interferometric analysis documentation included with each Hexagonal. Wavefront flatness is typically better than 0.08 peak-to-valley measured at 633 nm light. Coatings provide the highest possible reflectivity across the entire visible spectrum with a thin pre-coat layer of chromium to promote good metal adhesion. Dielectric overcoat layers are applied using Electron Beam Deposition (EBD), followed by an ultra-hard Ion Assisted Deposition (true argon IAD) process.

Milling the Rotating 6-Eyepiece Cylinder

Like quality aluminum racing wheels, our Hexagonals are also machined from a solid billet of aircraft-grade 6061-T6 aluminum. After being turned on a lathe to a perfect cylinder (above left), the [4.5" O.D. by 1" wall thickness] blank is then milled on a digital mill (shown below) using a rotary indexing head with arc-second accuracy. This full-machining process is very time consuming and aircraft-grade aluminum is expensive, but the end result is far superior to cheap, thin, weak pot-metal castings or thin multi-part rotating housings, like the other rotary eyepiece holders on the market. The original billet blank (above left) weighs a little over 2 lbs (37.5 oz). After a copious amount of metal is removed (above right), the weight has been reduced to a mere 14 oz.

2" SCT Quad-Lock AHEX Revolver (optional)

This VSI exclusive [2" format] SCT Quad-Lock captive revolver allows dual rotation of the Hex1. Screw it onto any 2"-24tpi SCT threaded visual back, slip the Hex1 into the Revolver and tighten the four [Quad-Lock] Nylon thumb screws. Then back them off a quarter turn [or so] until you can rotate the entire Hex1 easily. This unique dual-rotation feature allows the outer eyepiece housing  to rotate normally (like any eyepiece turret) by holding the rear handle stationary to rotate to a different eyepiece and/or rotate the entire Hex1 to a more comfortable viewing position by allowing the rear handle to rotate with the Hex1, which rotates the entire Hex itself. It  has industry-standard 2"-24tpi female SCT threads at the base of the adapter (pictured above right), double thumb screws at the top that lock into standard safety indents (see arrow at left), and our proprietary double thumb screws that are screwed into the proprietary locking groove in the barrel nose of our Hex1 (see arrow at left). It also doubles as a super-solid [Quad-Lock] SCT 2-inch barrel adapter when you need zero-flexure for astroimaging, etc.
When the Hex1 is inserted in the Revolver, and the Quad-Lock thumb screws are properly engaged into the Hex grooves, you simply rotate the Hex body [active eyepiece] by using the convenient handle at the rear. Its like rotating a diagonal, but you don't have to loosen or tighten any thumb screws and the Hex is securely locked into the rotator. It's locked in place, but can still rotate by simply turning the rear handle. You then change your magnifications by holding the handle in place and rotating the outer cylinder from eyepiece to eyepiece (click - click - click).
For your added convenience, all VSI TOADLOADERS have Quad-Lock, and mimic the AHEX function (pictured above left). This exclusive body rotation bonus is part of the VSI focuser Quad-Lock feature that [also] locks your Hex into your VSI Toad, while still allowing instant Hex body rotation, just like the AHEXadapter. So, if you are using a VSI Toad with Quad-Lock, you don't need our AHEX SCT adapter. SeeADAPTERS link for additional adapters.
Note that this special AHEX adapter, or a VSI focuser, is not required to use our Hexagonals. Our 1.25" Hexagonal turrets (above) fit in any standard 2" format focuser, etc. This proprietary feature, utilizing theAHEX adapter and/or our VSI focuser's Quad-Lock feature, just makes it a little more secure and very convenient to operate, allowing the Hex housing to rotate freely without loosening any thumb screws.


Black Forest Fire Destroyed VSI's Digital Machine Shop

UPDATE #2

BEFORE (above) and AFTER (below)
First came the fire, then the floods/ What next?
This is the 2nd update in the continuing story of the fiery demise of VSI. It's been 3 months since the fire. Progress is being made every day. After 5 flash floods of nasty black water (see picture above), we now have a trench diverting the water away from the old Black Forest Observatory (BFO) building so it will not be deluged with black water from future floods. The old VSI machine shop is gone (up the hill to the right of BFO). The excavator has removed all debris and left the concrete pad intact. However, I am abandoning the old shop sight.
I have decided to rebuild my shop on a personal level (appropriately) in the old BFO building (pictured above with it's newer pitch roof that was added after BFO was sold about 10 plus years ago). This structure has been many things in the past - observatory, office, shipping and receiving, product and personal storage, etc. Now it will be my new personal shop. Emphasize personal, not production.
New machine tools (lathe, mill, bandsaws, etc.) have already been installed and the restoration of some of the tooling from the fire has begun in the structure pictured above and will continue until next summer, or beyond if warranted. About half of the tooling (spacers, rotary tables, indexing heads, lathe chucks, etc.) is not recoverable because of the fire rust and seizing of integral parts. Some will be replaced, most will not.
Many of the stock assembled VSI products were sold shortly after the news of the fire was released. However, I have a few of the last of the VSI products available. These assembled products were stored in the BFO building. Note that over 50 VSI products that were not assembled, and existed only as parts, were stored at the machine shop and melted in the extremely hot fire.
As of this writing (Friday the 13th, 2013), I have almost all product port rings and adapters available, because I always kept quantities of these accessory parts in stock. You can order any of the port rings or adapters listed at VSI's website until quantities are exhausted. Payment by credit card is no longer available (check, MO, etc.). Of course, returns can not be accepted. If you own VSI major products that accept port rings or adapters, I would suggest thinking about your future applications now, rather than later.
Of the major VSI products available, I have one manual Zerotator. That's all folks! Call me if you are interested. These links are For Your Information Only. To reiterate, VSI is officially Out-of-Business. - PBVS

Rob Miller's TRI36M and accessories By Richard Keppler

https://www.astromart.com/reviews/article.asp?article_id=848

I'm back with part 2 of my review / description of Rob Miller's wonderful tripods and accessories. Part 1 concentrated on the TRI36L, the lightest version of this tripod family and how it operates. This commentary will concentrate a bit more on the accessories available for these superb tripods and will showcase a little bit about the medium duty version, the TRI36M.



First off, if you haven’t read part 1 of the review, I suggest you do so. Why? Well, because I am not going into any sort of detail of the operation of the tripod itself. All three versions, the L)ight, M)edium and H)eavy are basically identical with the exception of the size of the hardware they are built from and with. In other words, if you know how the TRI36L sets up, you know exactly how the TRI36H sets up. The operation is identical. The differences are in the physical size and weight of each mount, the options for mounting, and thereby the carrying capacities.

TRI36M with accesories.
TRI36M loaded down.

























Here are a couple of pics of the TRI36M. One is just the tripod sitting alone and ready for use with an AP900 mount. The second shows it loaded up with the mount, extensions, plates, rings, scope, guidescope, cameras, and just enough wiring to give one a bit of a headache when tracing back something not quite connecting properly. Once it is set up and operating, it is a dream to use and the TRI36M tripod is the base which holds it all with aplomb.


As mentioned in the previous review, the TRI36L weighs under 10 pounds, a total lightweight, and yet is rigid and more than sufficient for a few hundred pounds of equipment. I wanted to have two rigs to use since there really isn’t a lot to do once the imaging scope is up and running. I decided on getting a TRI36M very quickly after receiving the TRI36L and seeing for myself how excellent it really was. I felt the heavier tripod would be better suited to my larger telescopes yet would still be very lightweight and most importantly, Rob wasn’t offering a mounting surface for the TRI36L which would accommodate my AP900! The TRI36M currently has several options available for mounting an AP900, AP1200, Bisque MX, or a Mach1GTO via an AP adapter. More options may be available by request. So the next question is how much more does the TRI36M weigh? Not much! It comes in at well under 14 pounds in the base state. Adding optional leveling feet or pier extensions will raise this by a pound or two, but it is still incredibly light yet incredibly strong and stable.

AP900 Plate and Two Extensions!


One option I knew I would require is a "pillar" or "pier" portion to get the long refractor assembly and camera up away from the tripod legs, otherwise I was going to severely limit the amount of sky I could "see". I ordered two of the four inch extensions with the thought of adding another one if these two did not give me the required leg clearance. They are shown in the next series of photos being added to the tripod.

Basic TRI36M with Rotatable Top Plate
Extension Alignment
The process is relatively simple in that the six stainless steel grub screws holding the rotating top plate are removed. The central pivot is removed via three small hex bolts, under which is a shoulder bolt holding the top plate down. Once this bolt is removed, the top plate lifts off. I threaded the shoulder bolt back in place and tightened it just enough so that it would not fall out inadvertently, and I would not lose it were I to remove the extensions for any reason. The AP pivot must be replaced in the top plate for the AP900 mount, and is re-attached using the original three small hex bolts. I suggest doing this as soon as possible in order to minimize the inadvertent misplacement of these small bolts. Once this is complete, set the extension in place and replace the original stainless grub screws with standard steel grub screws provided for this purpose, loosely threaded in to position.

One Extension in Place with Top Plate


Note the small curved cut-outs on the extension which are marked with a small index mark just above each. These grooves are where the grub screws are going to sit to hold and lock the extension, and the index marks make it easy to rotate the extension to the proper position to ensure the proper placement. Once the extension is in place you can drop the top plate into position or add up to two more extensions first. I have two so the next extension is attached in exactly the same manner to the top of the previous extension. Once the two extensions were in place, I placed the top plate back on the 'pier' so formed and re-inserted the stainless steel grub screws to hold it in place.

Close-Up of Capture Flange on Rotatable Top Plate
Another Flange Close-Up
One modification readers will note is that I have replaced all six of the stainless grub screws attaching the rotating top plate with stainless thumbscrews. This allows me to easily release the top plate and rotate it to the position I want. This feature is designed into the tripod and would ordinarily be done via releasing of the grub screws with a proper sized Allen wrench. Since the top plate is not held in place by the central shoulder bolt any longer, the user should ensure that his telescope mount is very well balanced on top of the pier. While it is highly unlikely that it could pop loose due to the method the top plate fits down into and is held by the stainless setscrews, or, in my case, the thumbscrews, it could conceivably tilt and jam were the thumb or grub screws released sufficiently to allow it to do so.

Regular Leveling Feet (Left) Versus Heavy Leveling Feet (Right)
Another View of the Leveling Feet


One of the very best accessories, in my opinion, are the three leveling feet. A set of three of the regular version will set you back around $200 at this time. A set of three of the heavy duty version are around $270 if I recall properly. Initially I had two sets of the regular version, one on each of the tripods. I found them to be perfect on the light TRI36L tripod but they were a little more difficult to handle on the medium tripod once it was loaded down with well over 120 pounds of gear. Rob soon made a set of heavy duty leveling feet and I swapped them out without hesitation for use on the TRI36M. Here is a picture of both the TRI36L with the regular feet and the TRI36M with the heavy duty version. Although they look very similar, the heavy duty version features a thicker shaft with finer threading reducing the torque required to turn it, and larger knob size for easier gripping and increased torque. While they are not absolutely necessary, I cannot emphasize how much a set of leveling feet will improve the ease of use of the tripod and the resulting pleasure of ownership.

Extension Accessory Trays
and a view of the Extension Accessory Tray on the TRI36M
One of the other items Rob has designed for the tripod is a set of extension plates which clip on to the central tray forming the locking portion of the leg spreader assembly. There are three plates in a set and one piece of each just clips on the corresponding concave portion of the main tray. There is a curved slot on the extension which matches a curved ridge on the exterior boundary of the tray. The extension plate literally drops into position and is surprisingly difficult to dislodge accidentally, yet will lift straight out very easily.

The AP Mach1GTO/AP600/AP400 adapter on the TRI36M AP900 Plate


A few of the pictures here show stainless shoulder bolts sticking out the side of the extensions at random places. Yes the positions appear to be random but I put the bolts there on purpose as places to hang or tie off cables, hand controllers, and what have you. They are simply 5/16 – 18 bolts threaded in to pre-threaded holes into the sides of the extensions up to the non-threaded portion of the bolt shaft and lightly tightened so that they do not loosen accidentally or vibrate out in transport.

Overall, I am extremely pleased with my two Rob Miller tripods. They are relatively inexpensive when one considers the quality of construction. They are extremely lightweight, yet superbly made, and incredible performers. Rob has mentioned several times that he will have some web pages up 'real soon now', and I expect this will happen "soon". For now, he has been placing sponsor ads on Astromart and is listed in the sponsor section. You can contact him at robmiller1950@comcast.net at the present time (Feb 2012).


There have been rumblings of a few other accessory pieces available or soon to be available as well. I will be sure to keep an eye out for anything interesting and useful to the way I use the tripods.

Tuesday, November 14, 2017

Clash of the Titans: Ultimate Refractor Comparo

http://www.scopereviews.com/clash.html

by Ed Ting
Updated 9/18/00
Dateline August 20, 2000, 1:30 AM. It was a dark and stormy night. Five intrepid astronomers spent the earlier part evening setting up the AP155 and the FS152 refractors in my driveway. We all went home to catch quick naps, agreeing to meet back at the scopes at 2:15 AM. But it was now approaching 1:30 AM, and there were bad signs ahead. The danger signs were on the horizon. It was GOING to be a dark and stormy night, and soon. The clear skies of a few hours before were threatening to open up into a torrential downpour. I could hear the rumbling in the distance, growing closer. Would I be stuck disassembling the scopes myself in the dark, and in the rain? I had to get downstairs and into the driveway, and fast. But the closer the rumbling got, the less I was able to move. It was as if my shoes were filled with lead. The rumbling got louder and louder, until... ...Until the alarm went off. Groggy, I reached over and hit the snooze button. Isn't it funny what we dream about when we're planning to get up in the middle of the night to go observing? The "rumbling" in my dream was the oil furnace in the house, which was unusually active during this incredible summer of 2000, the coolest in memory. Outside the temperature hovered around 45 degrees. It felt more like October than August. I slipped on my leather jacket and wandered outside to the clearest, steadiest skies I'd seen in quite some time. As it turned out, I was one of the last to arrive at my own star party. Dave, Mike, and Chase were already tinkering with the equipment. In the east, Saturn, Jupiter, and Aldeberan burned brightly in the sky, forming a temporary seasonal triangle. Ever since I'd had the Takahashi FS152 (on generous loan from Todd Gross) I had been wondering how it would fare against the AP155. Conventional wisdom states that the Tak will have the edge on contrast (due to the simpler design and the knife-edge baffles), but the AP would have better color correction due to the triplet objective. Would our prejudices hold up? Or would observation throw us a curve ball? We were anxious to find out. Also present were a TeleVue 102 and a Genesis. In the garage, I had my Traveler, the 10" Starmaster EL, the 20" Obsession, and there was an AP Star12 waiting in the wings. The Astro-Physics 155 (6" f/7 triplet apochromat, $5400) has long been the standard-bearer in its class. This one was mounted on AP's superb AP900 mount, complete with a Goto system and AP's 80 mm guidescope. The rig looks lean and mean, and drew a gasp from the group when set up earlier in the evening. If you want one, get in line - AP's legendary waiting list suggests you might see one in three or four years if you get on the list today.
By the way, the quality of AP's products is such that even little throwaway items like that guidescope ($425) turn out to be big surprises. I have split Delta Cygnus and Epsilon Bootes with it, and its views of Saturn were quite stunning for such a small achromat. During the course of the evening, I found myself remarkably content to look through that guidescope while waiting for my turn to look through the AP155. On the other hand there's the FS152 (6" f/8 doublet fluorite apochromat), the flagship model in a proud line of world-class refractors. It's expensive at nearly $10K for the OTA alone, but unlike the AP, you can actually get one within a reasonable length of time if you want one. The FS152 is often mentioned as a Dream Scope by many people who have spent happy hours in the company of an FC76 or an FS102. Don't ask us which one looks better; the votes in the looks category were split. Suffice it to say, if you own either one, you WILL get a lot of attention at star parties. Both scopes are large, but the AP155 is surprisingly com- pact for a 6" refractor. The Takahashi is much longer at about 52 inches and requires a taller mount as a result. But since the AP has a triplet as its objective, the scopes wind up weighing about the same, at around 24-27 lbs. So here we were, gathered at 2 AM to look at Jupiter and Saturn. This was going to be a test of strength against strength. Would one side yield? Would it be possible to determine a winner amongst such exalted engineering statements? The AP155 spent the morning aboard the fabulous AP900 mount (about $7,000+ with accessories attached) while the FS152 was rigged onto Meade's LXD750. Both setups were solid and steady and caused no problems. Between the five of us, we own nearly every premium eyepeice made today, so it was not difficult to match powers (later the next morning while cleaning up, my garage looked like an explosion in a lens cap factory. I also hope that all those 7 mm and 9 mm Naglers wound up going home with the correct owners.) We started out with TeleVue Plossls, Naglers, Panoptics, and Radians, but eventually switched to the Pentax orthos (unfortunately NLA) which are inconvenient but are perhaps the sharpest eyepieces I have ever seen. Both telescopes are reference-quality refractors that deliver super-sharp, contrasty images. They are so good that observing run-of-the-mill deep sky objects like the Ring or Dumbbell at low power is not enough to tell them apart. You need to observe tight doubles and planets at high power to see any real differences. Everyone was anxious to get going, so we immediately trained the scopes on Saturn for the first comparison. At 121X to 203X, the FS152 was stunning. Cassini's division was seen all the way around the planet with direct vision. The planet and rings were razor sharp and looked etched into the inky black background. But...the AP155 looked ever so slightly sharper. The disc was slightly whiter as well (the planet was very slightly "yellow" looking through the FS152.) The atmosphere was holding up well around 200X so we used the short focal length Pentax orthos in both scopes (Dave owns two complete sets, so there were plenty to go around.) On Jupiter, there were nearly a dozen belts visible in times of good seeing. Both scopes showed impressive detail, but again, the edge was given to the AP, which was consistently better, more of the time. True to its nature, the Tak exhibited slightly better contrast in the razor-thin edge between planet and background. I should point out that only three out of five of us saw this contrast differential, and those who did see it ranked it as very minimal.

The 3rd quarter moon was up, and we caught scores of craterlets in Plato
(the seeing was good enough that two craterlets were seen even in the 80
mm guidescope on the AP.)  Again, the AP155 seemed slightly sharper, and
formed a "whiter" image as well, with no color on the limb.  Going directly
from the AP to the FS152, I found I could "train" myself to see a tiny trace
of color on the limb of the moon.  It was subtle, but there nonetheless.

And so it went throughout the morning.  Every time I thought the image in
the FS152 couldn't possibly be beat, I would wander over to the AP155 and
the image would be just as good, and sometimes even a tad better.  This
is NOT to suggest the Takahashi isn't a telescope of a lifetime.  It is.
Any one of us would be thrilled to own it.  Both refractors walked all over
the TV102 and the Genesis.  But the AP outdid the Tak in every category we
came up with, with the possible exception of contrast around bright objects.

We star tested both telescopes on Capella.  At 150X, the Astro-Physics
was showing near-perfect correction, with no false color at all.  The
Takahashi gave us a little more to talk about.  The optics are under-
corrected a bit, and you can see a minor purple halo if you know where to
look.  Pushing to 200X, the AP starts showing a tad of overcorrection,
while the Tak's diffraction images start degrading.  We ran one test at
stupid-high power - the FS152 was pushed to 900X.  While there was a lot
of false color at this magnification, the airy disk was still circular and
the image was clean, indicating superb lens alignment and collimation
(this also ended any speculation that the FS152 wasn't collimated.)
In a big surprise, the Takahashi's focuser garnered almost universal condemnation. Takahashi's focusers are generally known to be the best in the business. This one seemed unusually stiff. I opened up the focuser to find that this 4" version is a different design than the 2" units on their smaller telescopes. Even after tweaking, I couldn't get the buttery-smooth feel that I am accustomed to. On the other hand, the AP's mechanics drew nothing but praise. Dawn came much too quickly for us, and the last thing we did was look at the Trapezium in the pre-dawn light. One by one, the group dissipated into the brightening morning. I struggled inside and back to bed for a few hours, to dream about telescopes and observing. The "dark and stormy night" had turned out to be productive after all.
The Verdict: The Observers Speak What follows is a distillation of the comments I received, both verbally and in e-mail, in the days following this test. You will recognize some of these names from the Three Way Super Comparo. All are experienced observers and bona-fide equipment geeks (we've owned over 100 telescopes between us.) Chase M: The AP has the edge on sharpness. The combination of the scope and mount is world class and I hope I will have something like that in the future. I had troubles with the Tak focuser all night long. Verdict: AP155 John P: This was a great reason to get up in the middle of the night. The AP was better. But I think the Zambuto-equipped Starmaster 7" Oak Classic and 10" EL are at least as good, and they cost less. I'd buy a Starmaster. Between the refractors, if money were no object, I'd still buy the Astro- Physics. Verdict: AP155 Dave S: It was easier to see Cassini's more of the time through the AP. But the Tak is very close. I didn't see the contrast difference these guys were talking about. Verdict: AP155 Mike T: There was color and spherical aberration in the FS152. The FS102 and FC76 I have are close to perfect, why isn't this one? I didn't see any contrast differences. I expected more from the Tak. Verdict: AP155 Ed T: As regular readers are aware, I am a big fan of both marques. These telescopes are both superb, and it seems a little decadent and churlish to have to pick one. But the AP edges out the Tak on image sharpness and color correction, and it's the one I'd buy if I could. Verdict: AP155
Conclusion: Well, well...Look what we have here. A unanimous decision. While the AP155 won all of the first place votes, most of us are quick to point out that the FS152 still gave wonderful views and was never far behind. We just wished for a little more finesse in the figure of the lens, the focuser, and the color correction. There is one factor in favor of the Takahashi, however: You can get one. Waiting lists on AP refractors are legendary these days, and I can think of far worse fates than spending three or four years in the company of an FS152 while waiting for your AP155 to come in. So this Clash of the Titans ended with a clear victor. Well done, Astro-Physics! -Ed End Ultimate Refractor Comparo
